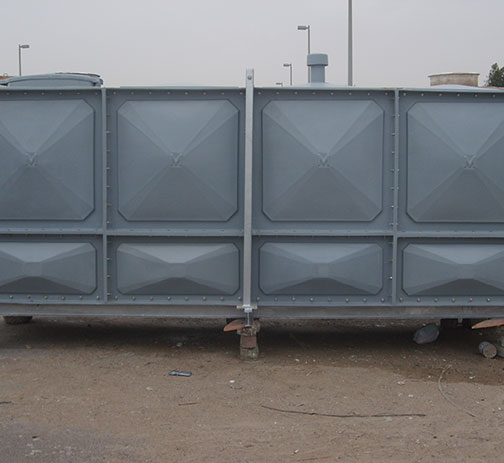

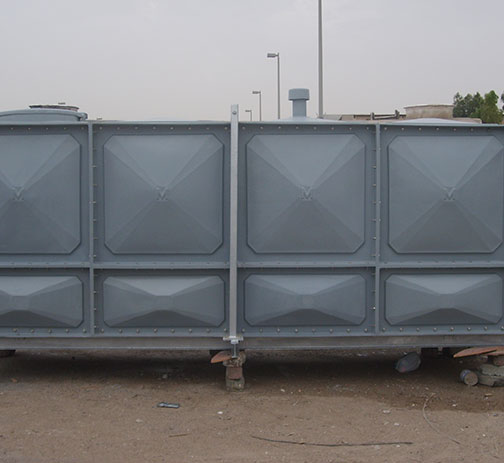

GRP Cold Pressed Panel Tanks
Sectional Tanks (Hand Laminated)
All panels jig-drilled for ease of assembly.
Heavy-duty panel covers bolted and sealed.
Internal PVC pillar supports included where required.
Manufactured under formal quality assurance procedures to British Standard.
Technical staff available for site measurements and advice.
Technical drawings provided for both tank and supports.
Smooth internal surface avoids bacterial growth.
Full tank erection and site by trained staff.
Typical Size Chart

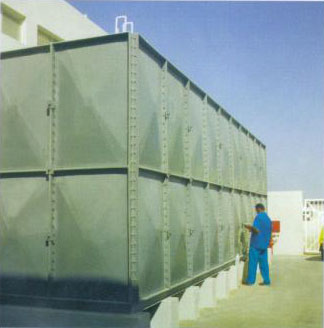

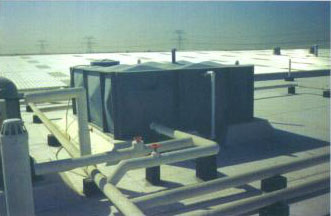

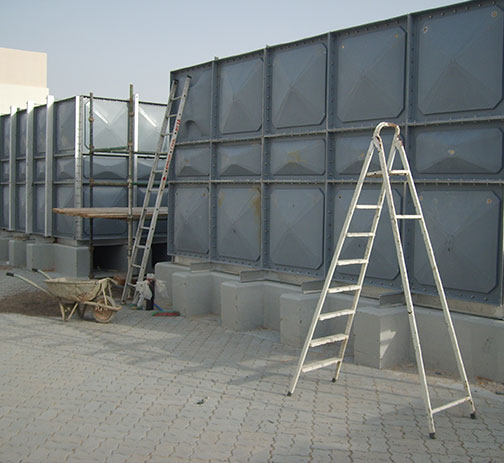

Tank Installation
Site Check List

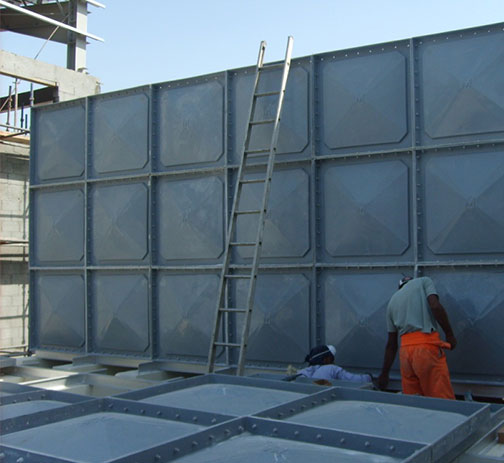

Mussiaby Tanks provides a full tank erection service. An experienced team will build your tank.

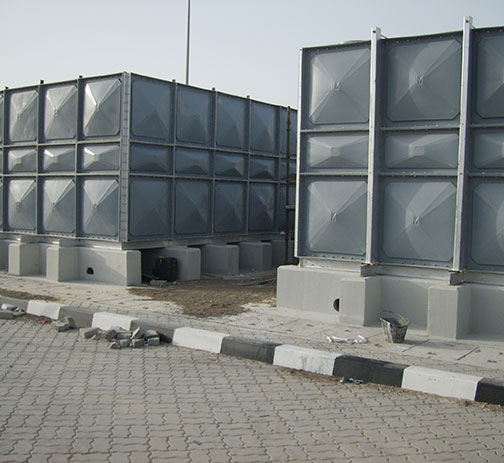

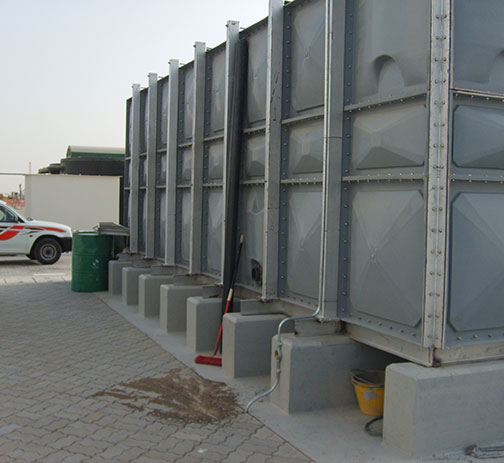

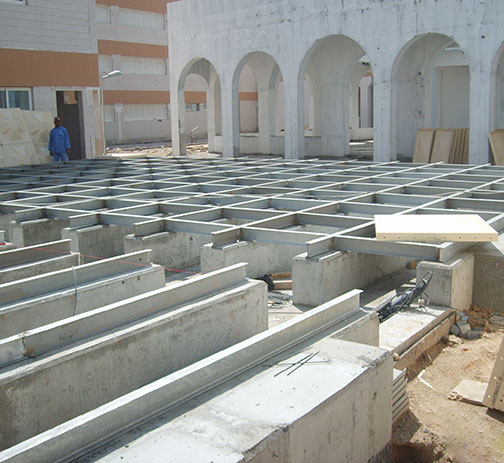

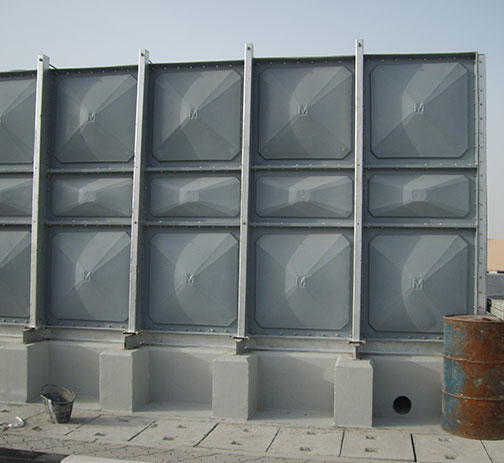

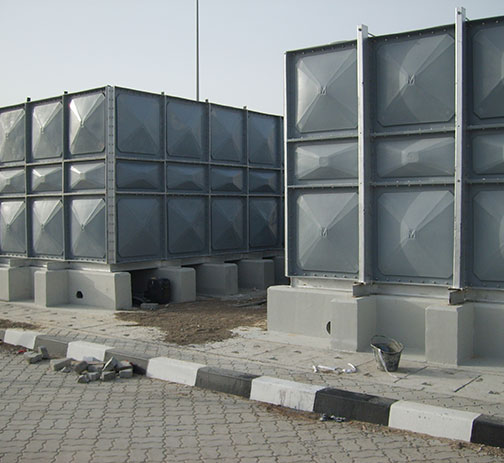

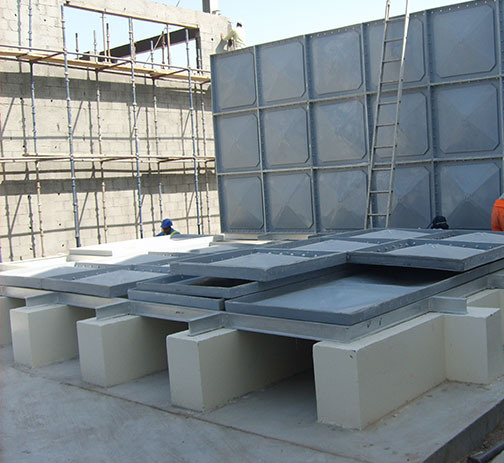

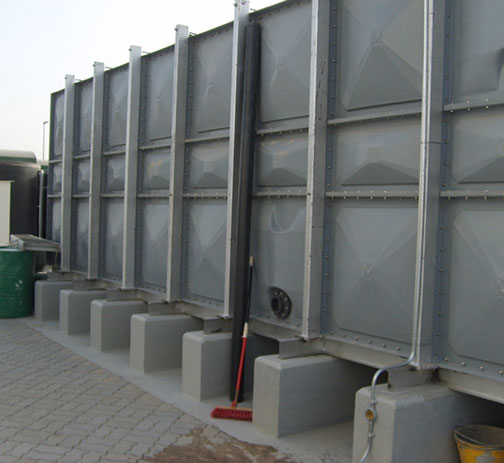

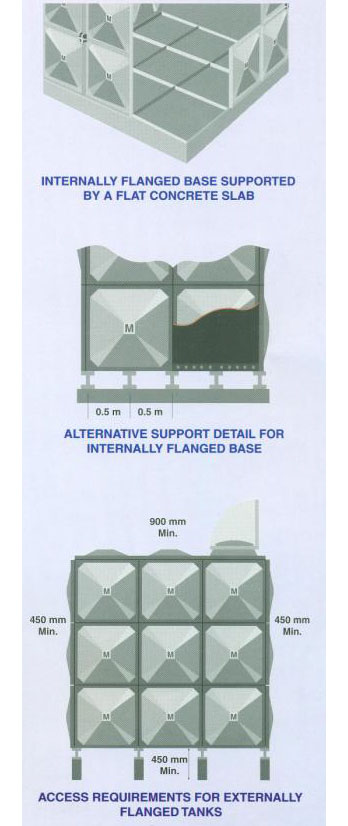

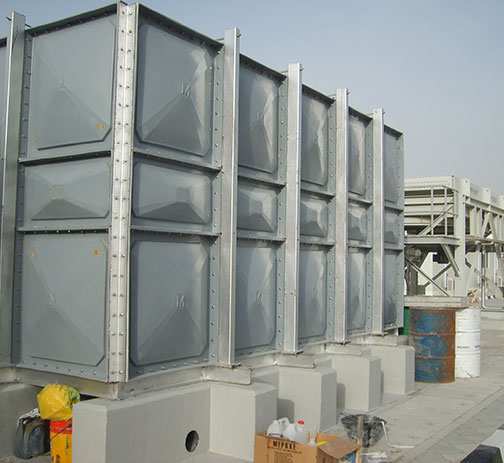

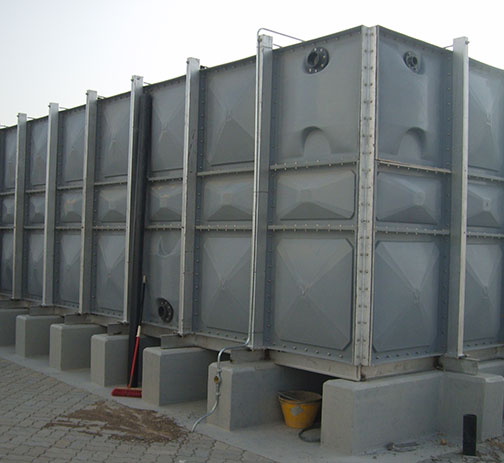

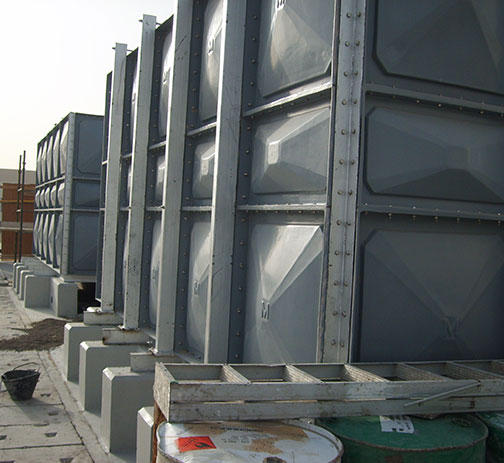

Tanks Supports
These are required in ONE DIRECTION ONLY. metric tanks at 1m centres; Support must be level and extend to the full EXTERNAL width of the tank plus 200mm. If built on a platform with no access to bolts underneath, we must be supplied.
Access
Space is required all around for ease of erection, unless the tank is internally flanged. The minimum requirements is the overall size plus 900mm. Tanks can be built in tighter spaces, maintenance.
Hoisting and Services
The contractor is responsible for hoisting the panels to within 6m of and on a level with the final position. If required, the contractor will also provide scaffolding, light and power free of charge.
Health and Safety
We reserve the right to refuse to carry out work in unsafe conditions.
Delays
We reserve the right to make additional charges for delays caused by preparatory work not being completed in accordance with our requirements.
Filling and Testing
This should be done as soon as possible after the tank is built. Our contract does not provide for a member of staff being present during filling.

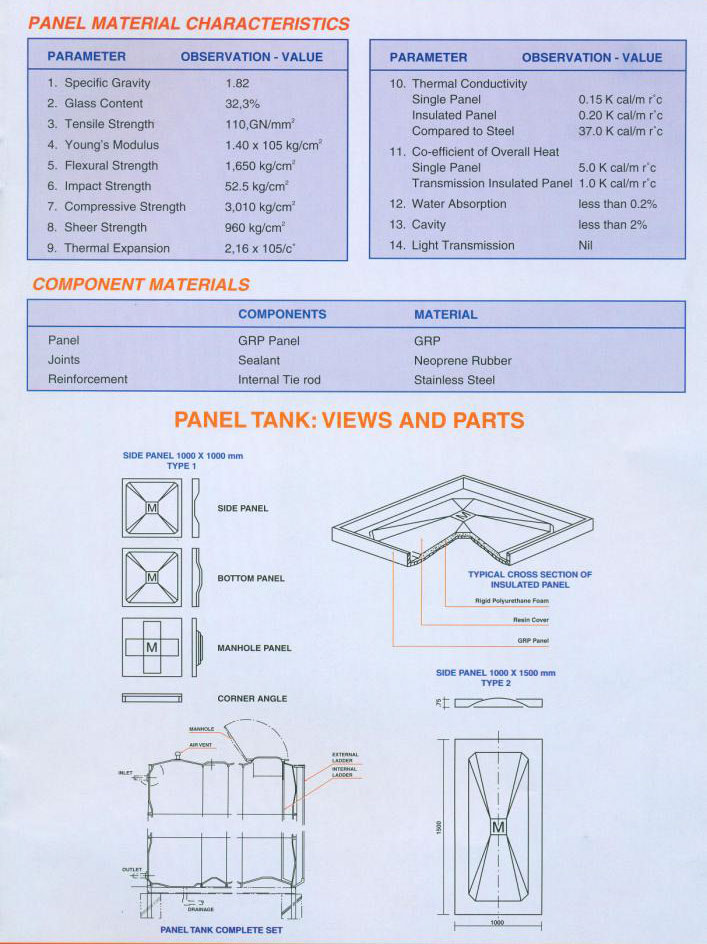

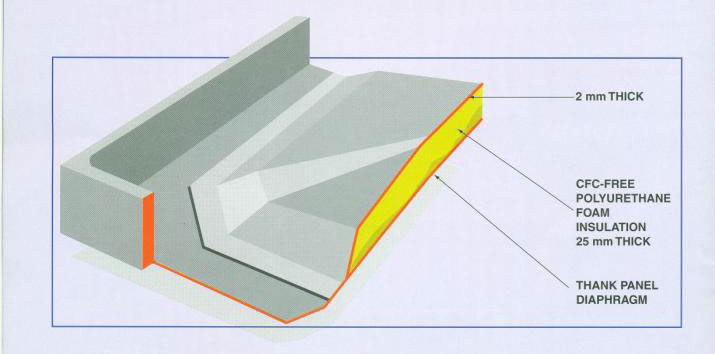

Insulated Panels
We offer also an insulated panel to assist on prevention of water temperature rise.
This has obvious advantages in the control of bacterial growth such as Legionella.
The 25 mm-thick polyurethane foam is CFC-free and has a U value of 0.6W/m/C. It is encapsulated between the panel and a solid outer skin which has a smooth exterior surface with uniform colour throughout.
Pre-insulation is available for Imperial and other panels in a range of thicknessess. These panels hand-laminated to tried and tested durability standards.
The cost-effective solution
Smooth and attractive exterior surface.
No costs for insulation removal during maintenance, no need for yet another sub-contractor.
Solid and durable exterior.
Completely waterproof for external use.
No more condensation nightmares.
Combatting the growth of bacteria such as Legionella.

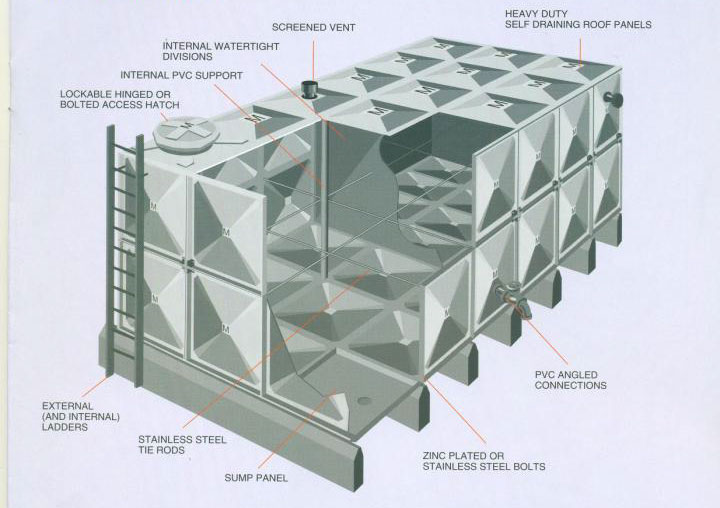

Accessories
Screened vents, overflows and warning pipes.
Internal GRP ladder.
Sump panel to allow complete drainage.

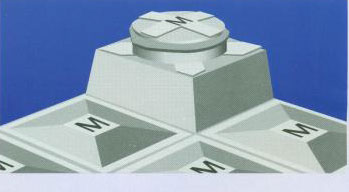

600mm-dia or square access hatches, hinged or bolted, fully lockable, if required.

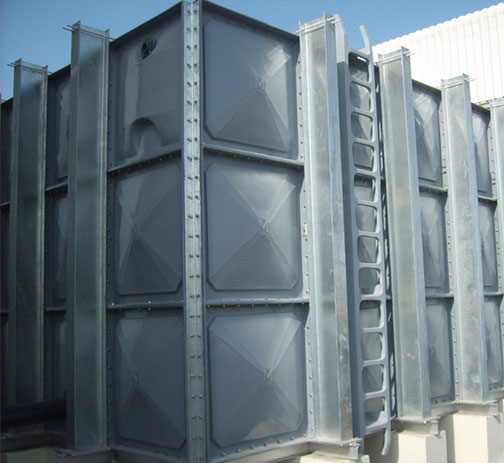

External GRP access ladders.
FITTED with 500mm DIA' MANHOLE
BOLTED OR HINGED.
